Semi Automatic Powder Filling Machine
Semi automatic powder filling machine, or auger filling machine here is designed for 1kg~10kg powder products. And it is suitable for the filling of various dry powder products, such as milk powder, spices powder, chili powder, coffee powder, detergent powder, flour, chemical powder, etc. With the features of low cost and high efficiency, semi automatic powder filling sealing machine can extremely improve your productivity and benefit your project. As a leading auger filling machine manufacturer and exporter in China, we provide a complete range of filling machines with strong custom capability and fast delivery. Welcome to inquiry us for a free price list.
Structures of the semi automatic powder filling machine

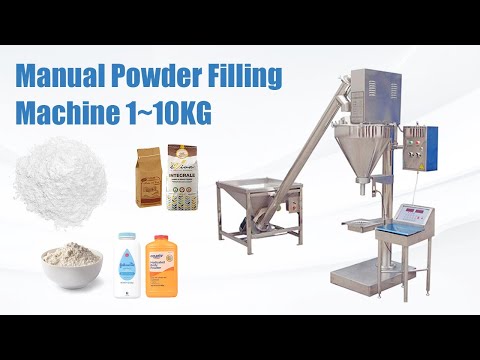

The semi automatic powder filling machine mainly consists of these parts, a feeding machine, a PLC touch screen, electronic scale, inlet, and outlet. All our filling machines are adopted stainless steel material and advanced technology, durable and super-efficient. Besides, there are various sealing machines available. In short, we support a complete automatic powder filling machine to fit your business.
Technical parameters of the manual powder filling machine
|Packing specification||1-10 kg|
|Packaging speed||500-1500 bags/hour (depending on packaging specifications and materials)|
Working principle of auger dry powder filling machine
Firstly, you need to manually add the raw materials to the silo, or be equipped with a material feeder, it is easy to feed materials.
Secondly, you can set the packaging speed, packaging weight, and other technical parameters via the intelligent PLC control touch screen.
Thirdly, the user needs to put the packaging bag or bottle in the discharge port.
Fourthly, turn on the switch and the packaging machine can work normally.
The semi-automatic powder filling machine adopts a combination of screw blanking and electronic weighing technology. The machine adopts microcomputer control. This screw filling machine has automatic quantitative, automatic filling, and automatic error correction. At the same time, it has functions like counting and cleaning.
Features and advantages of semi automatic powder filling machine
1. This semi-automatic auger filling machine is made of durable stainless steel. It is easy to clean and prevent cross-contamination;
2. This semi-automatic powder packaging machine integrates machine, electricity, light, and instrument into one. It is controlled by a single-chip microcomputer. And it has functions such as automatic quantitative, automatic filling, and automatic adjustment of measurement errors;
3. Fast speed: adopt spiral cutting and light control technology;
4. High precision: using stepper motor and electronic weighing technology;
5. Wide packaging range: the same quantitative packaging machine can be adjusted continuously within 1-10 kg through the electronic scale keyboard and replace the different specifications of the blanking screw;
7. Wide application range: both powdery and powdery materials with certain fluidity can be used;
8. Errors caused by changes in the proportion of materials and material levels can be automatically tracked and corrected;
9. PLC touch screen adjusts the functions of the machine. The semi-automatic auger packaging machine only needs manual bagging, and the bag mouth is clean and easy to seal.
Applications of the powder filling and sealing machine
Powder filling and sealing machine have a wide range of applications. On the one hand, it is ideal for handling the packaging of detergent powder, chili powder, tea powder, coffee powder, milk powder, rice powder, curry powder, cocoa powder, nutrition powder, chemical powder, herb powder, etc. On the other hand, it can suit different containers like bags and bottles. Send an inquiry to us to start your project.
What is the powder filling machine price?
This semi-automatic powder filling machine has different models, including PLC touch screen models and button models. At the same time, the specific parameters of different models are also different. In addition, the size of the silo also can be customized. Therefore, the final price is also different. You can contact us to tell us your specific needs, we will equip you with the most suitable and most favorable machine to benefit your project.
We have two types of machines for sale. They have a different control system. The first uses keys and the other uses a PLC control screen. The detailed parameters of the two machines are also different.
Differences between a semi automatic filling machine and an automatic packing machine
- Different production efficiency. The automatic powder packing machine adopts advanced fully automatic technology. Therefore, the production efficiency is higher than that of the semi-automatic packaging machine. At the same time, it can save lots of labor.
- The adjustable range of the automatic powder packing machine feeding is relatively narrow. While the feeding adjustment range of the semi-automatic packaging machine is wider.
- In terms of the degree of automation, the difference between semi-automatic and fully automatic is that one relies on labor and the other is unmanned operation.
- The price is different. The price of semi-automatic packaging machine is more favorable and cost-effective.
Which one should you choose: automatic packing machine or semi-automatic packing machine?
In summary, in terms of technology, the automatic packaging machine has more advanced advantages. The semi-automatic packaging machine also has its own advantages, such as price advantages. In the production process, there are pros and cons between the two.
Therefore, enterprise customers must carefully consider the process of selecting equipment. Choose the machine according to the products you need to pack and the actual conditions. The right is the best.
Additional Equipment: sealing machine, feeding machine
The semi-automatic powder machine can complete the process of weighing and filling. After that, it is necessary to manually seal the product package with a sealing machine. Therefore, a sealing machine is helpful.
Multifunctional film continuous sealing machine TH-900
This sealing machine can be used for packaging and sealing products. It can seal food bags, medicine, daily cosmetics, local products, chemical products, electronic products, vegetable seeds, hardware, etc. It is widely used in factories, shops, retail departments, service industries, and other industries. Combining the sealing machine with the semi-automatic packaging machine is the best choice.
- This equipment has firm sealing and high efficiency;
- The structure is simple, compact, and small;
- Beautiful appearance, advanced technology, low power consumption;
- Convenient operation, maintenance, and other advantages.
- You can equip the sealing machine with embossing wheels and printing wheels. And the fonts can be changed as needed.
- It can work continuously for 24 hours, with strong performance and low failure rates.
Technical parameters of TH-900 sealing machine
|Power supply:||220V 50Hz 520W|
|Sealing width:||5-14mm adjustable|
|Bag sealing capacity:||up to 55 bags/min (100mm)|
|The number of printed characters:||≤39 characters|
You can manually feed the silo, or you can buy a feeder. And It can be automatically fed by screw feeding.
The feeder should match a semi automatic powder filling machine. It can complete the automatic feeding of the machine. It effectively improves packing efficiency and reduces labor costs.
- It is Used in conjunction with the semi automatic auger filling machine. And it is controlled by packaging machine.
- Set with a push switch for easy cleaning.
- The silo is equipped with a vibrator for smoother feeding,
Technical parameters of Taizy auger powder feeding machine
|Material box volume||100-300Kg|
|Loading height||2000mm (height can be customized)|
|Voltage power||AC380v 1100W|
|Material||Stainless steel type|
1. How does it ship?
We will package it in Plywood Box. And it can prevent the machine from being spoiled.
2. How to contact us?
You can fill in your information on our Taizy company websites. Then our sales manager will contact you about the details.
3. What kind of packing material can we choose?
Plastic bags, bottles, nylon materials are all suitable.
4. What’s the weight range of the packing?
0-5 kilograms is OK. If you want to pack more powder, we can customize the silo for you. Its maximum packing weight can reach 10 KG.
