Horizontal bag feeding machine

Horizontal bag feeding machine

The brief introduction of horizontal bag feeding machine

A horizontal bag feeding machine is very versatile, it can package both powder, liquid, granule, and paste. Also, the types of bags can be various, such as stand-up pouches, zipper bags, four-side-seal bags, three-side-seal bags, paper bags, etc. The bag feeder is composed of two parts, a feeding system, and a bag feeding system.

The construction of horizontal bag feeding packaging machine

The feeding system depends on the specific type of raw materials to be packaged: screw feeding device (can be equipped with a brush and other dust removal devices) is generally used for powder packaging; small particles, then generally choose the turntable feeding; four-head scale and other electronic combination scale feeding device is mostly used to package lumpy particles, such as cookies, etc.; liquid or paste using liquid pumps or paste pumps. The discharging system is made of stainless steel, which is suitable for a variety of materials, high-grade and stable, sturdy, and durable.

The bag feeding system includes taking the bag, holding the bag, fill and seal. By the way, the bag feeding system can be customized according to customer requirements if it encounters chips and other cases that are not easy to fill, adding a lower vibration device and a stabbing device. If it is a zipper bag needs an additional zipper opening device.

The machine needs to be used with an air compressor. The width of the bag is less than 20cm, you can add a coding machine, such as a ribbon coder. The sealing device adopts cutting-edge heat sealing technology, with easy temperature control, for different packaging film materials, thickness, adaptability.

The classification of bag feeding packing machine

Bag feeding packaging machine for powder
Bag feeding packaging machine for liquid
Bag feeding packaging machine for granule

The workflow of bag feeding packing machine

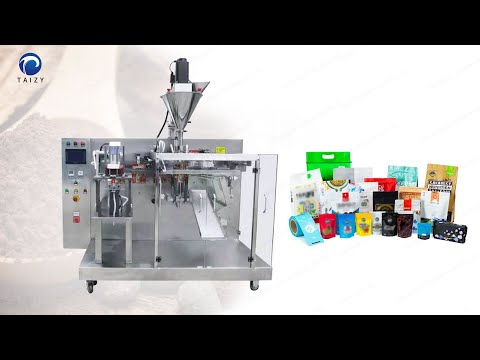

The working video of the horizontal bag feeding machine

The design features of horizontal bag feeing machine

  • Plc color intelligent touch screen, support multi-language, parameter setting, machine control are particularly convenient.
  • The equipment meets the sanitary standards of food processing machinery, and the parts of the equipment in contact with materials are processed with 304 stainless steel or other materials that meet the requirements of food hygiene to ensure the hygiene and safety of food, in line with GMP standards.
  • The machine is equipped with a photo-eye detection device: first of all, it will detect whether the bag is open or not, if the bag is not open, it will transport the bag directly to the end without any operation, and after that, there is a corresponding detection when feeding and sealing, which ensures the stable proceeding of the packaging process and saves the cost of the bag to avoid waste.
  • The long dragging plate at the seal is also made of stainless steel, which is not only beautiful as a whole but also plays a role in buffering the packaged items to a certain extent.
  • Intelligent alarm system, when the plastic bag sealing place is melted by high temperature, stick to the copper block when the machine will automatically alarm and stop operation in time.

Q&A

What are the parameters of the machine?

Because the specific structure and parameters of the machine are based on the raw materials and bags to be packaged by the customer, the specific size is required to be customized after we communicate with the customer, if you want to understand the specific situation can communicate with us directly.

Is this machine fully automatic?

Yes, workers only need to prepare the bags in advance and put them in the designated position, set the fixed parameters on the control panel, and the machine will automatically grab the bags for packaging, and the bags will be driven to the ground along with the dragging board after the packaging is completed, and the whole process does not require manual operation.

Is this machine equipped with a coding machine?

The coding machine can be configured according to the needs of customers, our company uses the ribbon coder. It uses a thermal printing ribbon instead of ink printing, takes a special live word loading and unloading for word structure, can be in any packaging materials on the code. The printing is clear, not easy to erase; hygienic and clean, no ink pollution, is an economic and hygienic coding method.

What is the price of the horizontal bag feeding machine?

Because our machines are customized according to customer needs, please contact us directly for specific prices.

Machine Parameters

Power380V/2.5KW
Packing speed20-50bags/min
Dimension100-210mm/110-320mm(L*W)
Weight600kg
Measure scope20g-1000g
Air consumption0.7m³/min
